Specialist industrial line filters supplied across Ireland

At Matik, we are proud suppliers of Nano & Worthington Creyssensac line filters in Ireland. We stock Nano air treatment equipment. Call our expert team for more details.

Air filters for improved quality of compressed air

Untreated compressed air contains dirt and particles that must be filtered out to protect your air powered equipment as well as your final products. However, filters also affect air system performance and efficiency.
  • High reliability
  • Maximum contaminant removal
  • Significant energy savings & low system operating costs
  • Easy to service

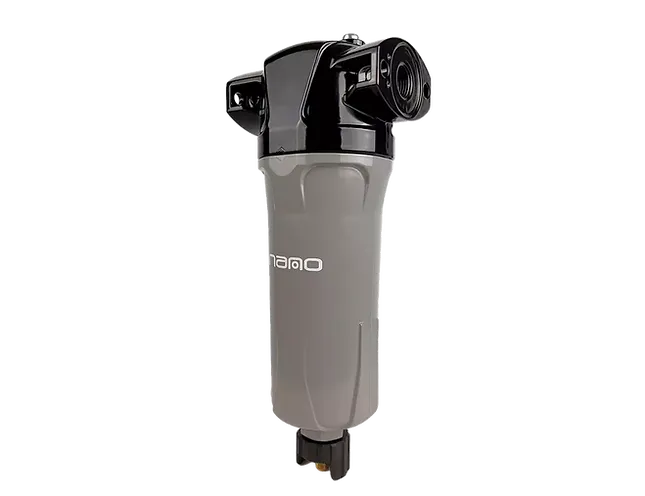

NANO Compressed Air Filtration

Performance Validated Filters

Achieving clean and oil-free compressed air and gas is made easy with the nano range of GFNB compressed air and gas filters.
Our filters are tested and validated in accordance with ISO 12500-1 and ISO 8573.1:2010, and are manufactured using only the highest quality materials to ensure optimum performance and improved efficiency, ultimately lowering energy usage.
View Brochure

Water Separators

Introducing the Nano range of centrifugal water separators – the ultimate solution to eliminate 99% of bulk liquid contamination from your compressed air and gas system.
With the GF range, you can expect to witness a significant improvement in your manufacturing processes, resulting in reduced downtime and increased productivity.
Tested according to ISO 12500-4 and manufactured in an ISO 9001-approved facility, these water separators ensure that your downstream equipment is protected from corrosion and damage. This guarantees that you can significantly reduce system downtime and maintenance costs. Upgrade to the Nano range of GF water separators today and experience the benefits for yourself.
View Brochure

Medical Sterile

We offer a variety of medical sterile filters that are designed to surpass the standards necessary for medical gas pipeline systems. Nano take great care to ensure that our filtration products are tested and validated according to international guidelines.
The Nano medical sterile range undergoes third-party testing and is also validated in accordance with HTM 02-01, NFPA 99, ISO 7396-1, and AS 2896.
View Brochure

Medical Vacuum

Nano medical vacuum filters are custom-made to remove solid, liquid, and bacterial impurities from medical vacuum systems.
They are also compliant with ISO 7396-1, HTM 02-01, and the 2018 revision of NFPA 99 (5.1.3.7.4) standards.
Their unique design ensures maximum filtration performance with minimum pressure drop, making them highly energy-efficient.
View Brochure

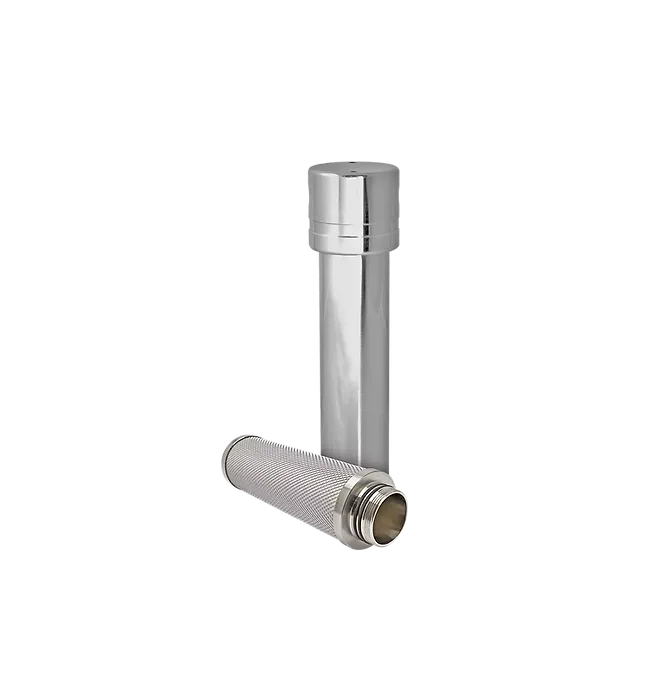

High Pressure Stainless Steel Filters

Matik offers the Nano F4 range of high-pressure stainless steel filters, the perfect solution for a wide range of demanding applications. Whether you’re in the chemical, food and beverage, manufacturing, military, oil and gas, or pharmaceutical industry, our comprehensive range of filters is designed to meet your needs.
With pressure ratings of up to 345 barg, Nano filters are built to withstand even the toughest conditions. What’s more, the high-pressure filtration models are manufactured in an ISO 9001-approved facility and tested according to ISO 8573-1:2010 standards, so you can be sure of their quality and reliability.
Choose the Nano range of high-pressure stainless steel filters today and experience the benefits of high-quality filtration for your business.
Contact Us

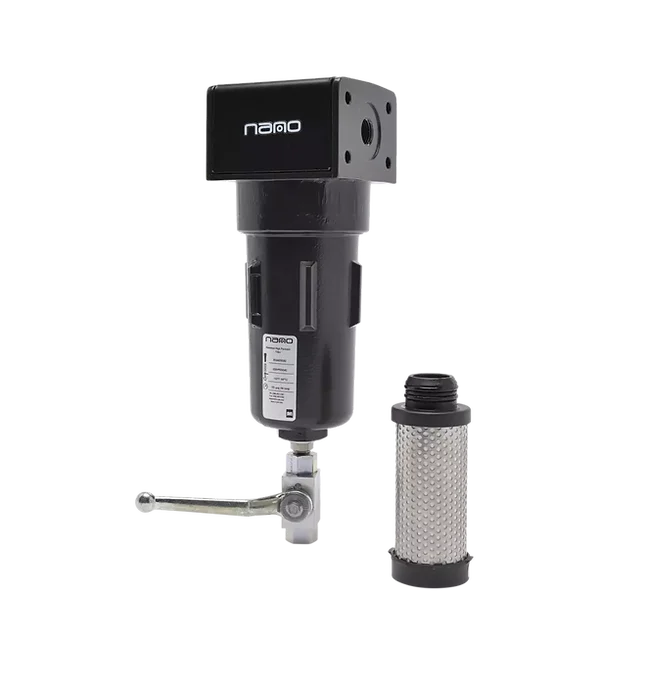

Mid Pressure Aluminium Filters

Matik offers Nano F3 mid-pressure compressed air and gas filters! Designed specifically to meet the unique demands of high-pressure applications running up to 50 barg, this product range is the perfect solution for PET bottle manufacturing, offshore instrumentation, medical settings, and heavy industrial environments.
The filters are of the highest quality and are CRN and ASME-approved, ensuring the utmost safety and reliability. Produced in a state-of-the-art facility approved by ISO 9001, these filters are tested to meet ISO 8573-1:2010 standards, so you can be confident that you’re getting the best product on the market.
Upgrade your high-pressure system today with the Nano’s mid-pressure compressed air and gas filter range.
View Brochure

GF AND F-SERIES FILTER RANGE

Nanofilters undergo rigorous testing and adhere to the highest quality standards, ensuring consistent and efficient filtration in a comprehensive range of models. You can choose from models of particulate filters, coalescing filters, and activated carbon filters, to meet the diverse needs of different industries and applications.
  • Performance Validated Filters
  • Water Separators
  • High Capacity Flanged Filters
  • Mid Pressure Aluminum Filters
  • High Temperature Dust Filters
  • High Pressure Stainless Steel Filters
  • Filter Heater Combinations
  • Mist Eliminator Filters

SLF Silicone Free Filters

The filters are meticulously manufactured in a rigorously controlled environment, ensuring the absolute absence of silicone on the components and throughout the production process.

Every filter undergoes thorough scrutiny, including dimensional inspection, pressure, and performance testing, along with a paint compatibility examination, guaranteeing reliability and efficacy.
SF filters, available in 5 robust grades, effectively shield your compressed air system from an array of contaminants, barring the entry of dry and wet dust, oil aerosol, oil vapor, and water droplets, thereby maintaining the integrity and efficiency of your compressed air applications.

Filter grades

  • P - Coalescing and particulate general-purpose pre-filter
  • G - Coalescing filters for general purpose protection, removing solid particles and oil aerosol
  • C - High performance coalescing filters for general purpose protection removing solid particles and oil aerosol
  • S - Particulate filters for dust protection, removing solid particles
  • D - High performance particulate filters for dust protection, removing solid particles
  • V - Oil vapor and odour removal filter
Contact Us

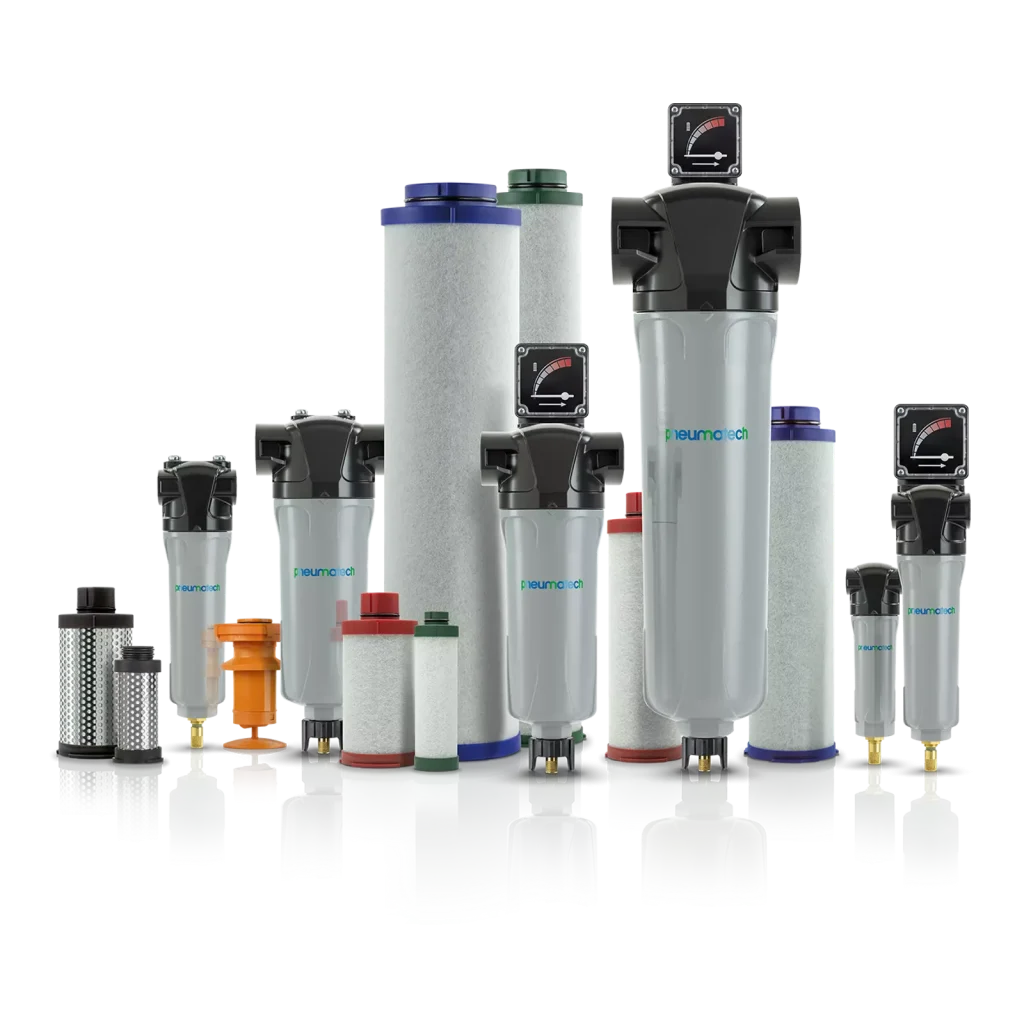

Pneumatech compressed air filters

We are also proud suppliers of Pneumatech air compressor filters.
For over 40 years, Pneumatech has provided complete filtration solutions to protect your investment in equipment and processes. Our comprehensive line-up of filters is based on unique and proprietary enhanced media to efficiently reduce all types of contamination. We are proud to continue our legacy with this newest line of enhanced filtration systems and replacement elements – all in stock and ready to ship.

Breathing Air - Compressed Air Equipment

We provide cutting-edge products for purifying breathing air, crafted with precision to eliminate contaminants and deliver the highest standard of breathable air in critical settings.
These products are essential in fields where air quality is paramount, including healthcare, laboratory environments, emergency services, and beyond.
Nano’s air purification solutions stand out for their exceptional reliability and safety, offering users peace of mind. Utilising advanced technology, these products effectively filter out impurities, particles, and hazardous substances from compressed air, ensuring that personnel have access to clean and safe air for breathing.

Portable Breathing Air Case

In our industry, there is perhaps no more critical use of compressed air than for breathing.
The Nano B1 BAC portable breathing air purifier case is the solution for one or multiple users who need a robust, go anywhere breathing air system.


FLOW RATE
1.5 to 30°C Operating Range

PRESSURE RANGE
1 to 10 barg

PORTABILITY
Under 18 kg

Breathing Air Panels

In industry, there is perhaps no more critical use of compressed air than for breathing.
Nano BAP breathing air panels are the optimum solution for one or more users who require a convenient, high quality breathing air system but doesn’t require the portability of a case.

FLOW RATE
50 or 175 scfm max

CONNECTION
1/2 BSPP

PRESSURE RANGE
1 to 10 barg

Breathing Air Purification

In our industry, there is perhaps no more critical use of compressed air than for breathing.
While many breathing air applications may require only the removal of particulates, oil, odour and taste, others may also require the removal of hazardous gasses such as carbon dioxide (CO2) and carbon monoxide (CO).
Nano NBA breathing air systems are the optimum solution if there is a potential for high levels of CO and CO2 in the air as it is imperative they are reduced to safe levels for breathing.

FLOW RATE
8 to 648 scfm

CONNECTION
3/8″ NPT(F) to 2 1/2″ NPT(F)

PRESSURE RANGE
6 to 16 barg

Ultimate 10-2550 Threaded Filter

The Ultimate 10-2550 range is designed to deliver clean, dependable compressed air for a wide variety of applications. Built to exceed strict air purity standards, it supports efficiency and sustainability while ensuring reliable performance.

NOMINAL FLOW RATE (m3/h)
10 – 2550

Connection (G/NPT)
1/8″ – 3″

Grade

P

G

S

C

D

V

Particle removal (micron)

5

–

1

–

0.01

–

Outlet oil aerosol concentration (mg/m³)

1

0.3

–

0.01

–

0.003

Total mass efficiency (%)

>90

>99.25

–

>99.9

–

–

Quality class of air at outlet (particles/oil)

4/3

-/3

3/-

-/2

1/-

-/1

Initial pressure drop over filter in dry applications (bar)

0.05

0.055

0.055

0.085

0.085

0.115

Initial pressure drop over filter in wet applications (bar)

0.08

0.125

–

0.125

–

–

General specifications

Significantly reduced differential pressure <125 mbar
Maximum working pressure: 16 bar(g)/232 psi(g)
With manual drain: up to 20.7 bar(g)/300 psi(g)
Available from 1/8“ to 3“
Flow rates from 10-2550 m³/h (6-1500 cfm)

Options

Connection kits
Automatic drain
Wall brackets
Manual drain with adapter
Electronic drain
Differential pressure gauge including potential free contact
